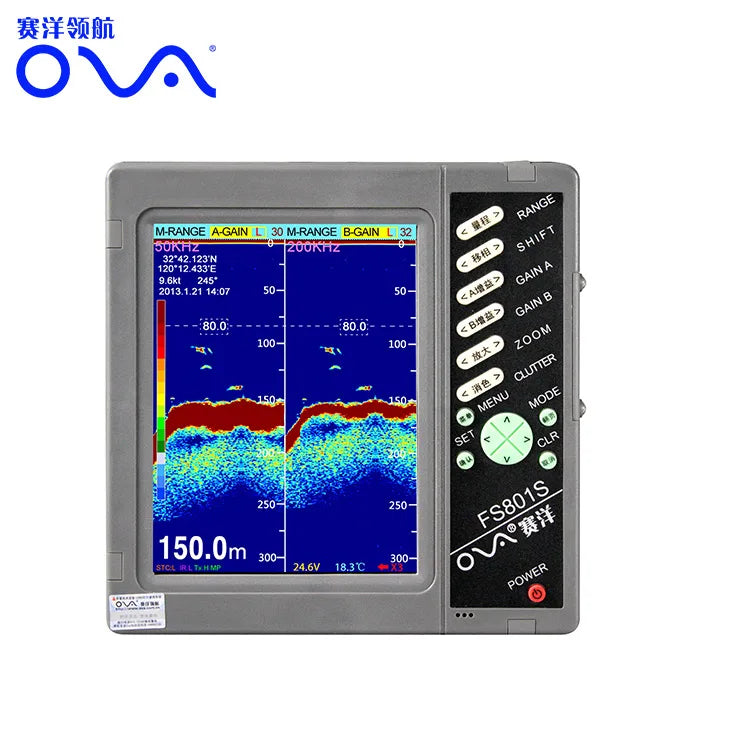

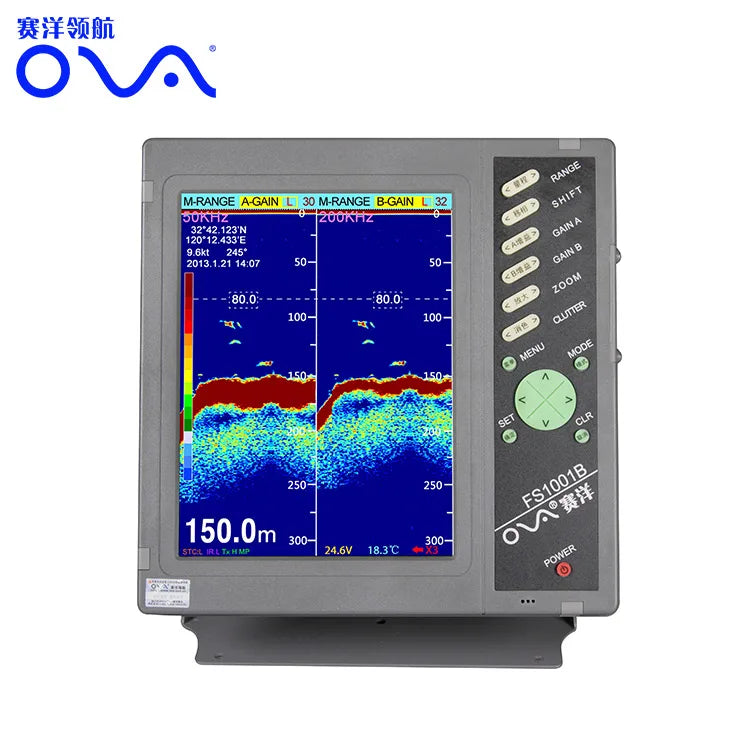

Fishing vessel equipment marine electronics Sonar sea water fishfinder
Fishing vessel equipment marine electronics Sonar sea water fishfinder
Couldn't load pickup availability

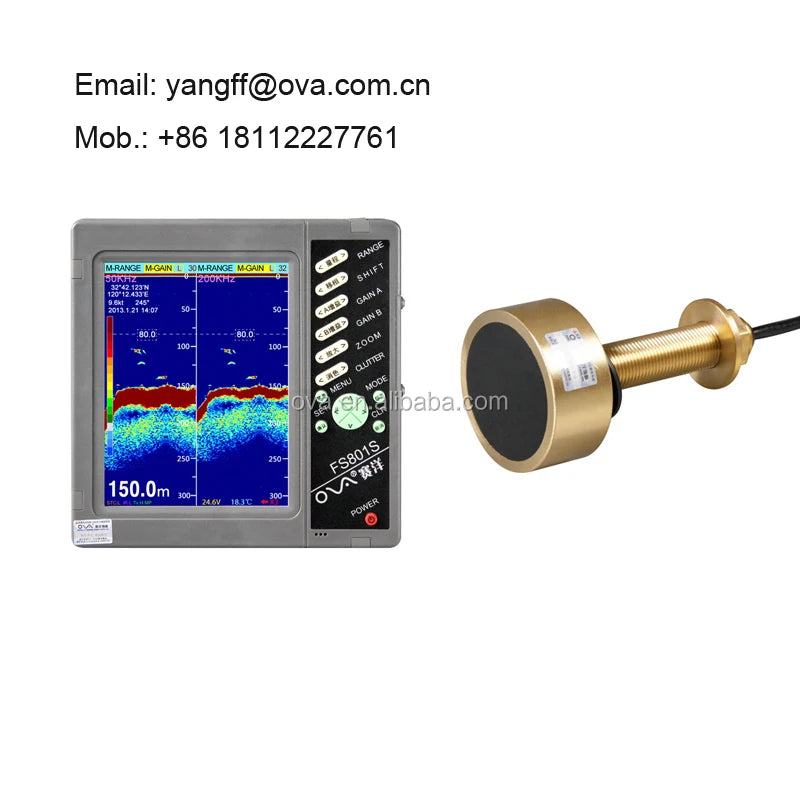

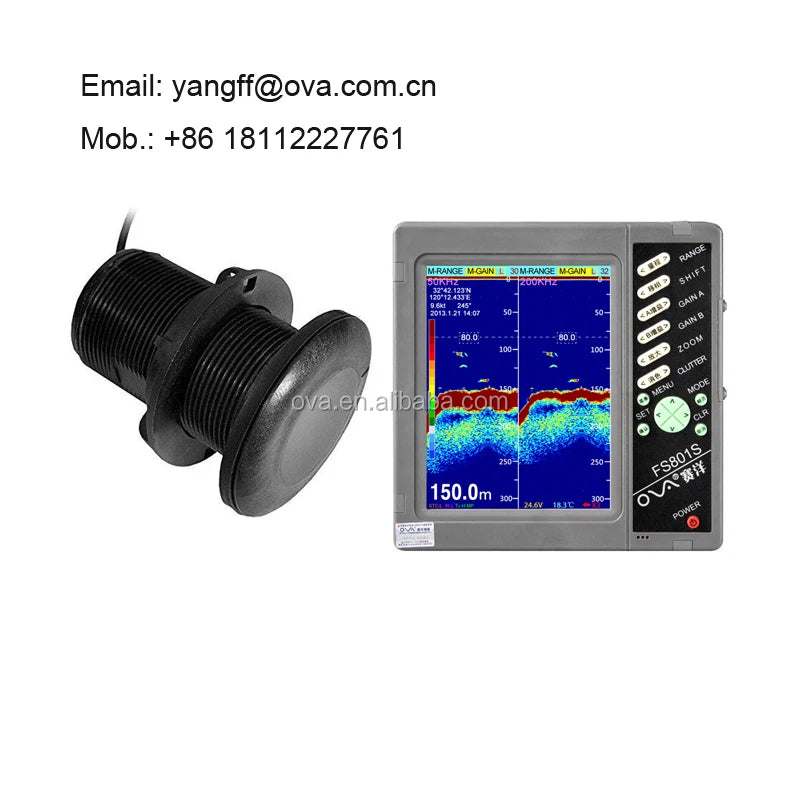

| Model |
FS801 |
| Frequency |
50&200KHz |
| Output Power |
600~1000W |
| Power Supply |
DC 24V(10.8V~31.8V) |
| Power |
High-performance, full isolated, PWM control of power supply |
| Display |
|
| Type |
8’’ TFT LED-backlit LCD |
| Screen Resolution |
800x600px |
| Range |
0~500m |
| Expansion Mode |
OFF/Auto/Manual/Bottom Lock |
| Display Mode |
Single(HF/LF), Dual, Single+Zoom |
| Picture Speed |
(Stop), 1/8, 1/4, 1/2, x1, x2, x3 |
| Tx Power |
OFF/L/M/H |
| STC |
OFF/L/M/H |
| Color |
8/16/64 |
| Background Color |
Black, Light Blue, Blue, White |
| Alarm |
Fish Alarm, Voltage Alarm, Depth Alarm*(Optional with temperature sensing transducer) |
| Language |
Simplified Chinese, English, Korean, Vietnamese(Can be customized) |
| Other Function |
Mark, Auto Range, Auto Gain, A-Mode, Scale Line, Clutter, White Mark, White Line |

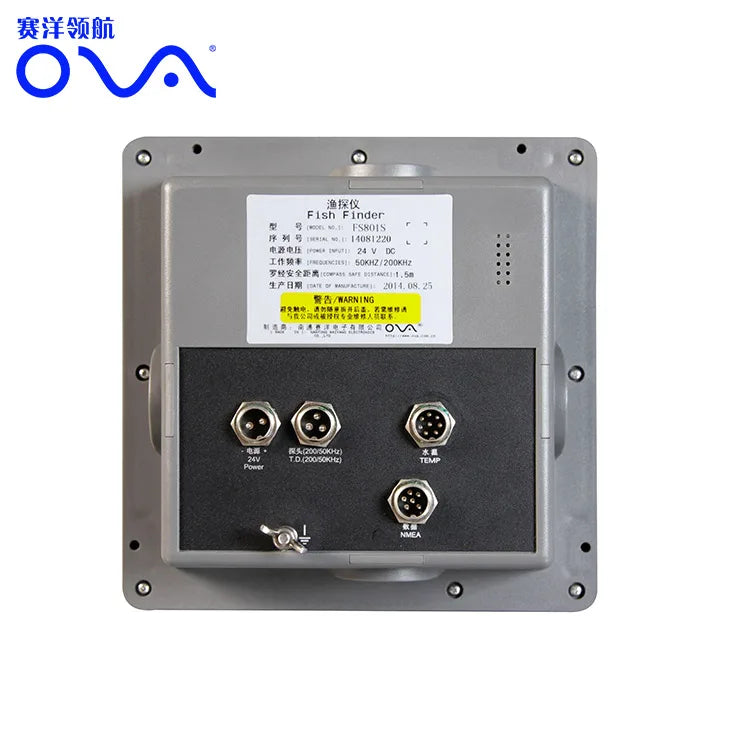

| Interface |
|
| NMEA Input |
GPS Sentences(GGA, RMC, VTG) |
| NMEA Output |
Depth Sentences(DPT, DBT) |
| SD Card |
Update software, storage and replay data, import and export data |
Q: Where is your company located? How can I visit it?
A: Our company is located in Nantong, which is about two hours from Shanghai and half an hour by car from Nantong Airport.
Q: How can I get the sample?
A: Samples could be sent within 3-5 days if there is in stock. Generally, sample is not free.
Q: What's the lead time?
A:If we have stocks of the item you need, we can send goods to you within 3-5 working days after 100% payment into our bank account. If we don’t have enough stocks, different products will take different days. Generally, it need around 30-35 days.
Q: How does your factory control product quality?
A: ISO9001 Certificated, independent quality control team with inspectors in our factory.
Q: What is your Minimum Order Quantity?
A: We sell you at least 10pcs for each item in normal order, but we also accept the sample order.
Q: What’s about shipping?
A: Small order can be shipped by air and large quantities can be shipped by sea, no matter your assigned agent or ours, Our best advantage is that we’re located in Nantong that is close to Shanghai and Nantong Port.
Q: What’s your agency/distributor policy?
A: We have too many different policies according to target markets, so please send email for detailed discussion or talk face to face.
