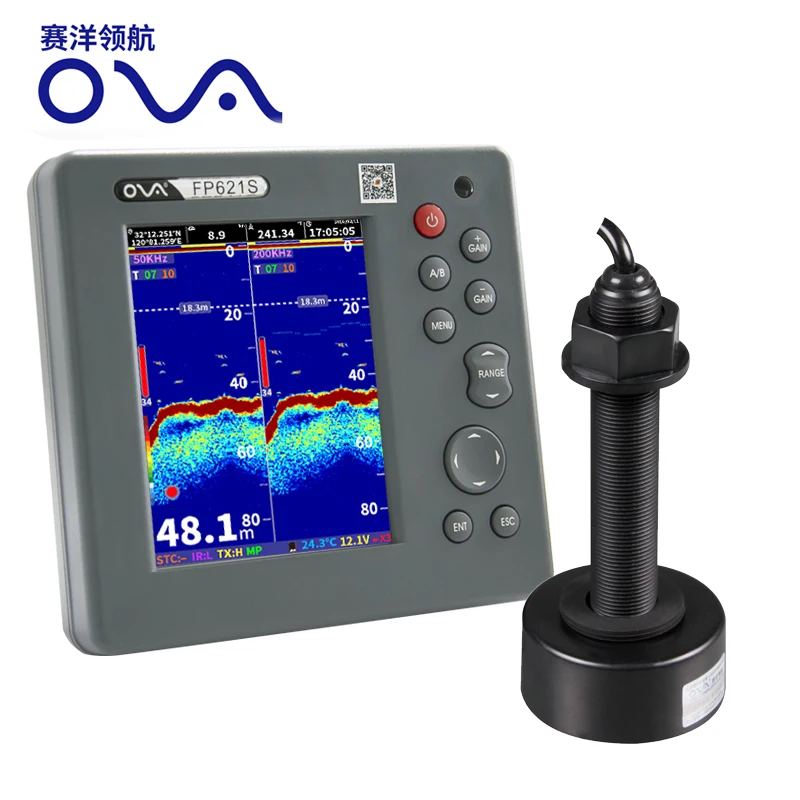

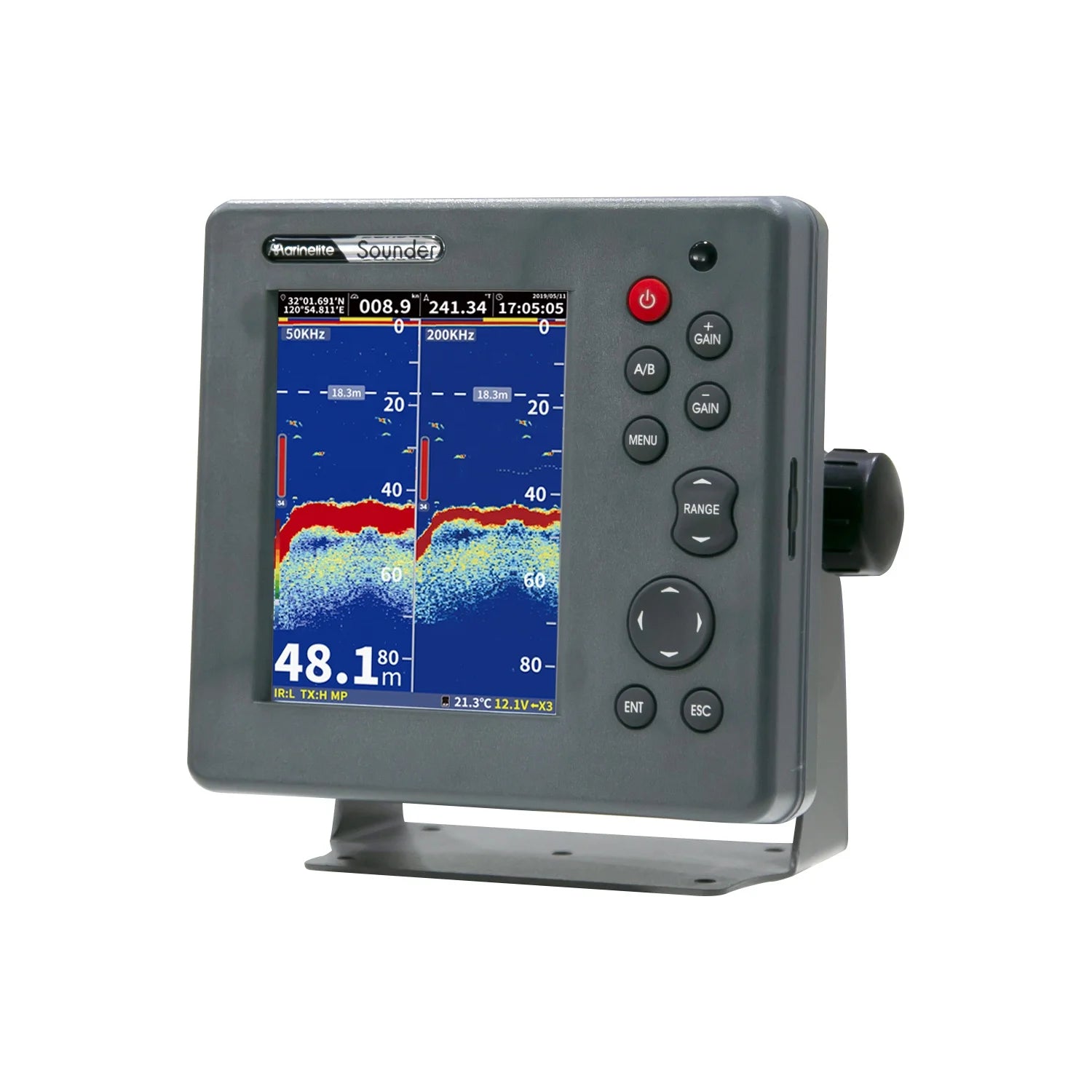

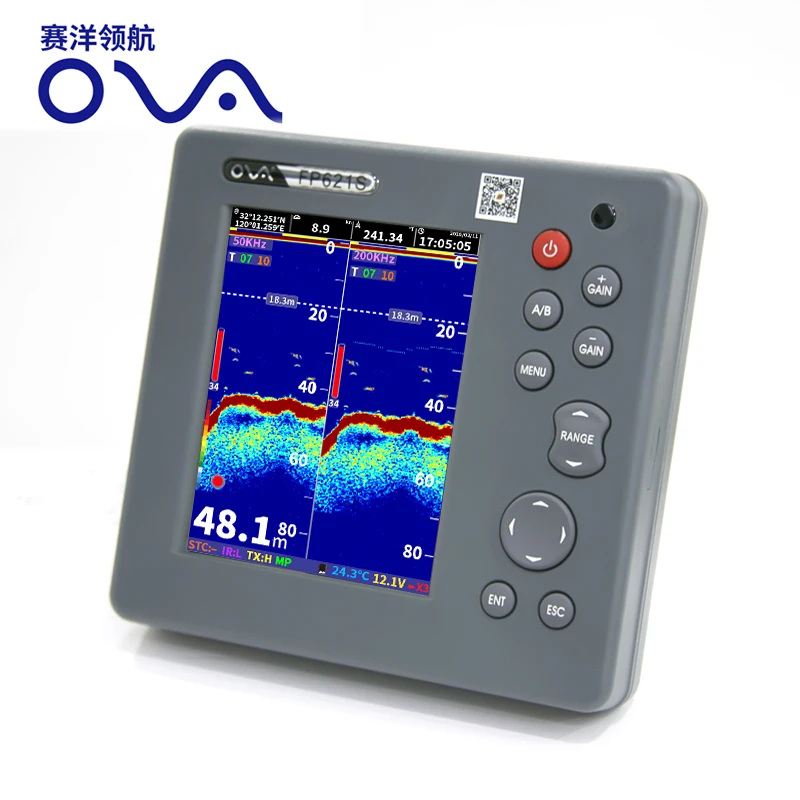

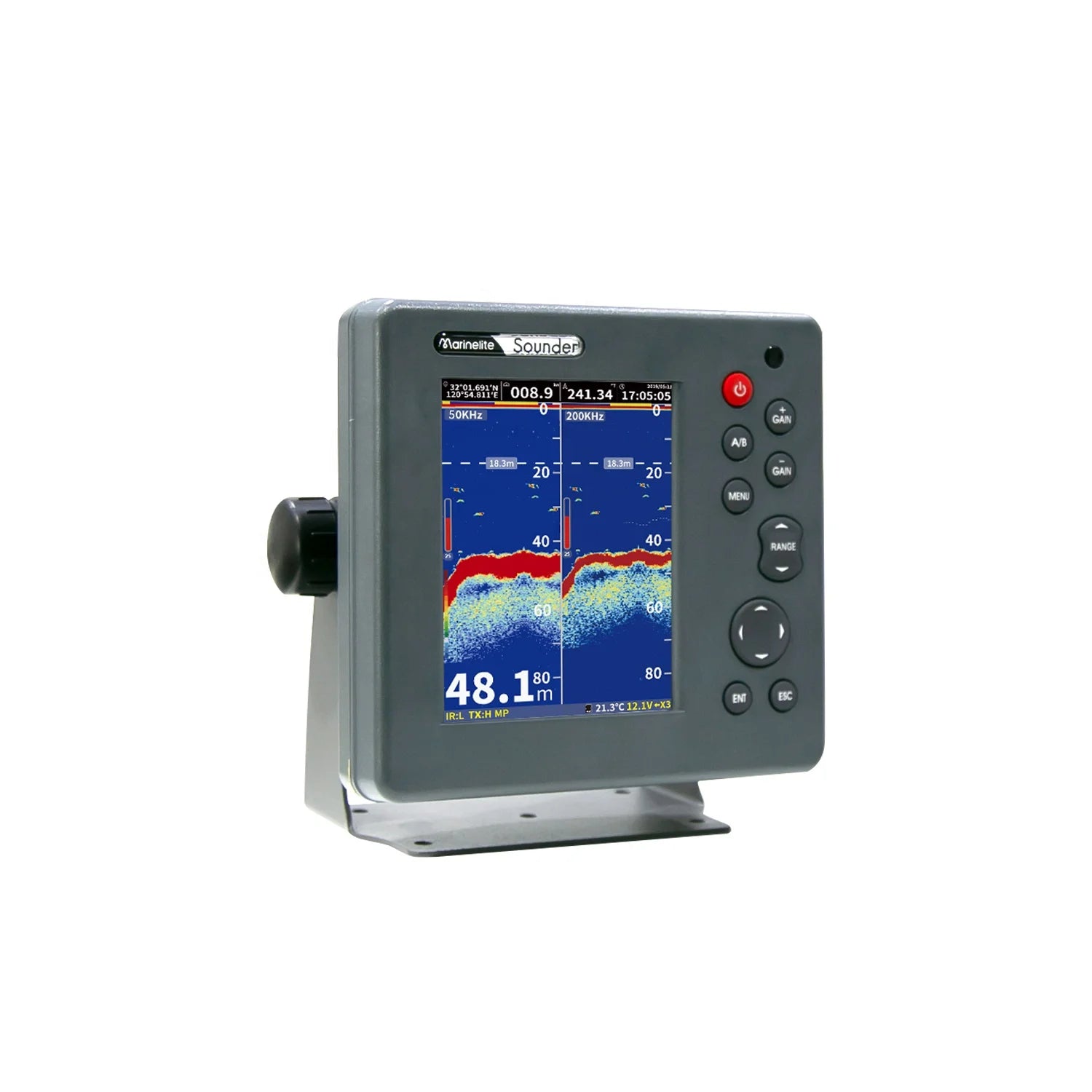

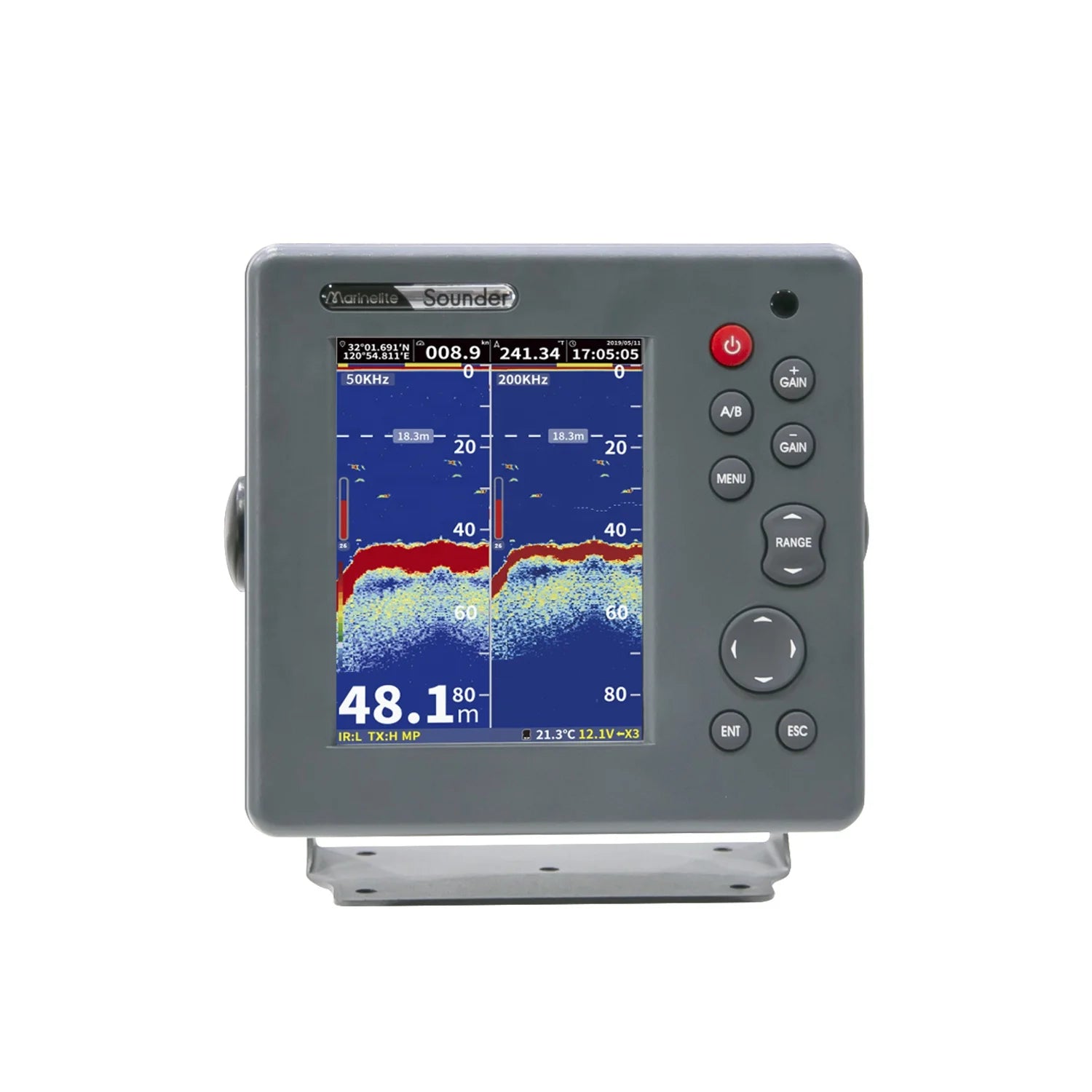

Commercial 6-Inch Depth Sonar for Boats Electronic Fish Detector Device for Commercial Fishing Vessels Ships CCS
Commercial 6-Inch Depth Sonar for Boats Electronic Fish Detector Device for Commercial Fishing Vessels Ships CCS
Couldn't load pickup availability
| Model | FS-601 | |||||
| Display Size | 5.7" LCD | |||||
| Resolution | 480x640 | |||||
| External dimension | 179mmx186mmx84mm | |||||
| Language | Chinese,English,Korean,Vietnamese | |||||
| Voltage Range | 12~36V DC | |||||
| Frequency | 50 & 200KHz dual frequency | |||||
| Output transmit power | 300W | |||||
| Emission rate | 3600 pulse/minute on top | |||||
| Pulse length | 0.12~3.0ms | |||||
| Measuring accuracy | 0.1m | |||||
| Sensitivity | 7 dBμV | |||||
| Depth range | 0~1000m | |||||
| Auto range | off/on | |||||
| Auto gain | off/low/mid/high | |||||
| A-mode | off/on | |||||
| Alarm function | Deep water alarm,shallow water alarm,fish school alarm | |||||
| Amplify mode/zoom mode | off/Bottom lock/auto zoom/manual zoom | |||||
| Picture advance speed | 5 steps: stop | |||||
| Background color | 4 kinds | |||||
| Color assortment | 7 kinds | |||||
| Depth unit | meter,inch,feet | |||||

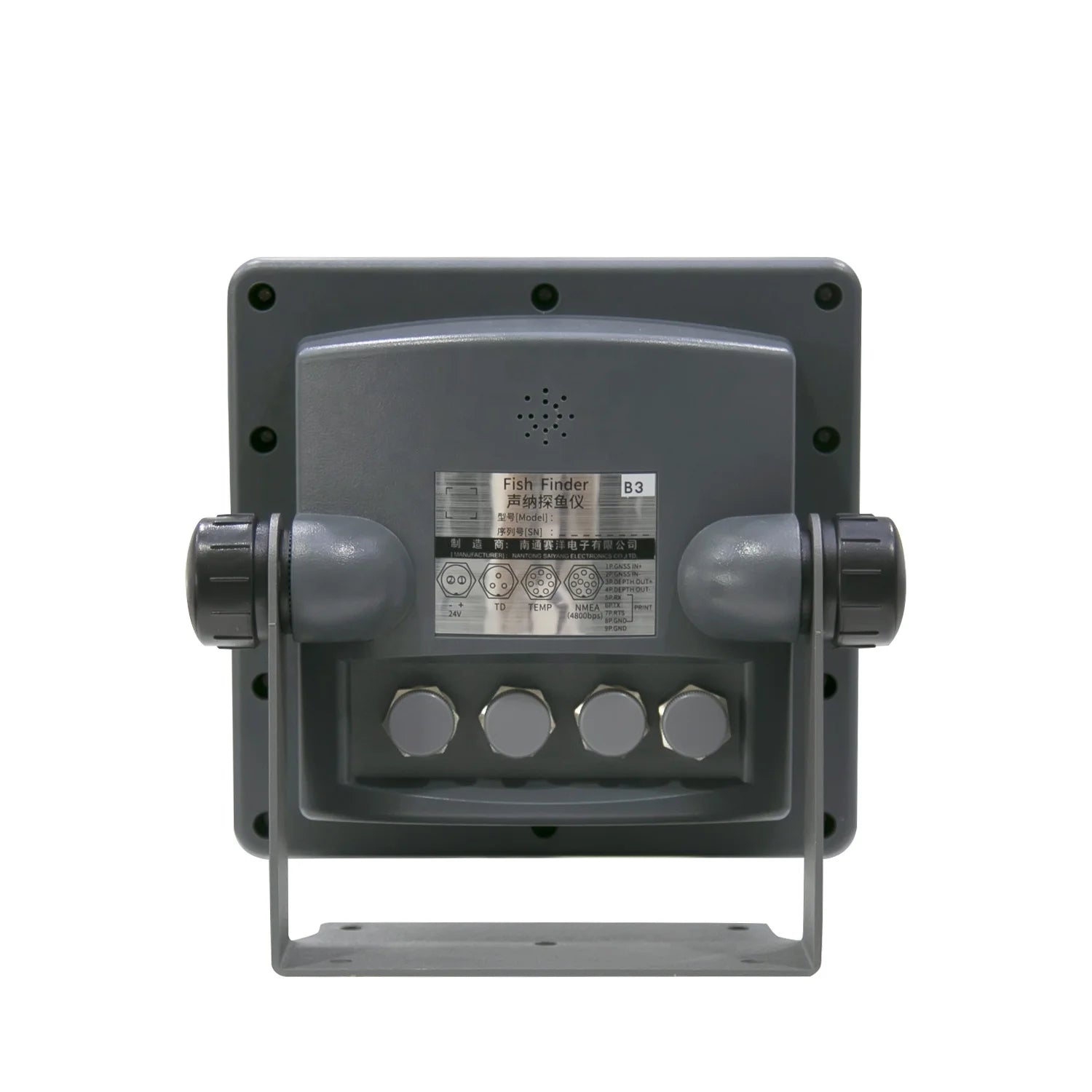

| Interface |
Water temperature interface:x1 Transducer interface:x1 Power interface:DC 24V |
|||||
| Environment | Temperature:-10°C~50°C | |||||
| Equipment List | Display Unit FS-601S 1unit | |||||
| Installation material | ||||||
| Operation Manual | ||||||

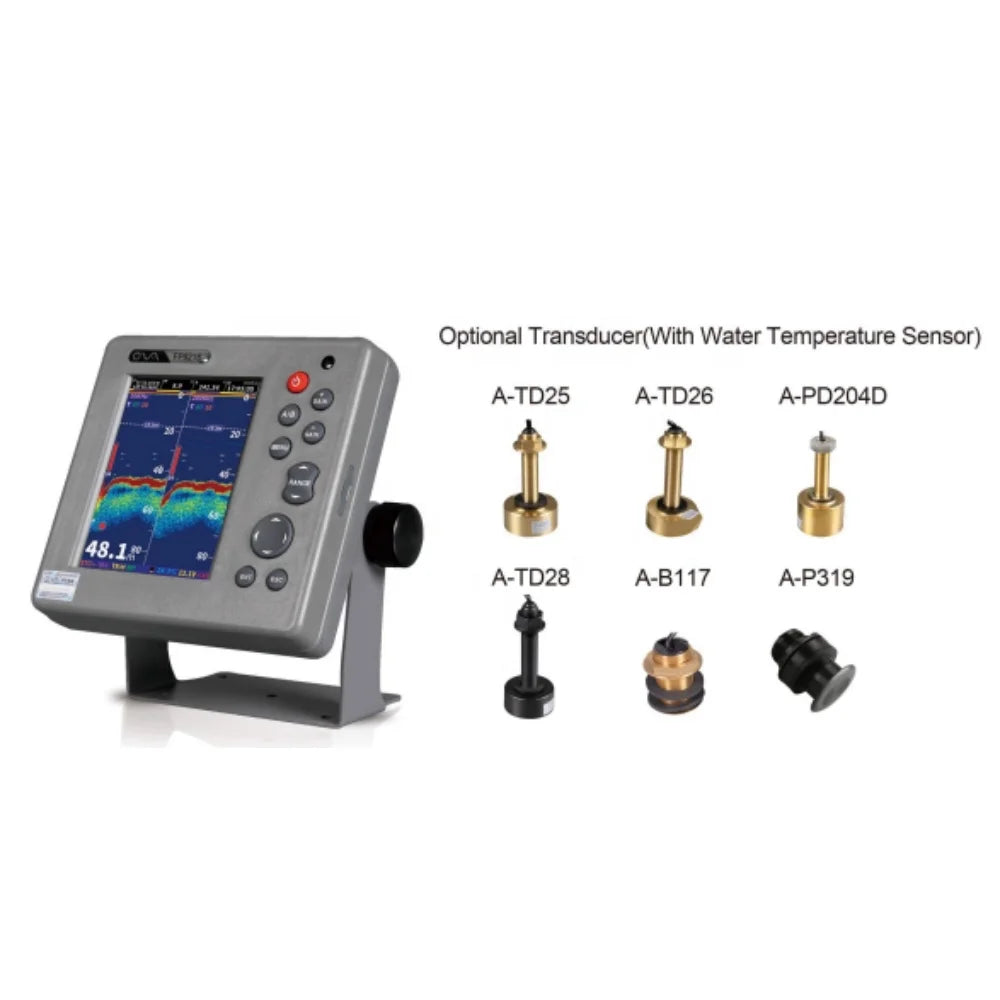

| Transducer (optional) | ||||||
What is the advantage of echo sounder?
Echo sounder, also known as sonar, is a highly advanced underwater detection technology. It works by sending out a sound signal into the water and measuring the time it takes for the echo to bounce back. This data is then used to create a detailed and accurate image of the seafloor.
There are several advantages to using an echo sounder, including:
Fish finding: Echo sounders are also used by commercial fishermen to locate schools of fish. Using an echo sounder, fishermen can efficiently locate fish and plan their strategy accordingly.
Safety: Echo sounders make underwater navigation safer by providing accurate information on the depth of the water. This information is crucial for avoiding navigational hazards such as rocks and sandbars.
Q: Where is your company located? How can I visit it?
A: Our company is located in Nantong, which is about two hours from Shanghai and half an hour by car from Nantong Airport.
Q: How can I get the sample?
A: Samples could be sent within 3-5 days if there is in stock. Generally, sample is not free.
Q: What's the lead time?
A:If we have stocks of the item you need, we can send goods to you within 3-5 working days after 100% payment into our bank account. If we don’t have enough stocks, different products will take different days. Generally, it need around 30-35 days.
Q: How does your factory control product quality?
A: ISO9001 Certificated, independent quality control team with inspectors in our factory.
Q: What is your Minimum Order Quantity?
A: We sell you at least 10pcs for each item in normal order, but we also accept the sample order.
Q: What’s about shipping?
A: Small order can be shipped by air and large quantities can be shipped by sea, no matter your assigned agent or ours, Our best advantage is that we’re located in Nantong that is close to Shanghai and Nantong Port.
Q: What’s your agency/distributor policy?
A: We have too many different policies according to target markets, so please send email for detailed discussion or talk face to face.
